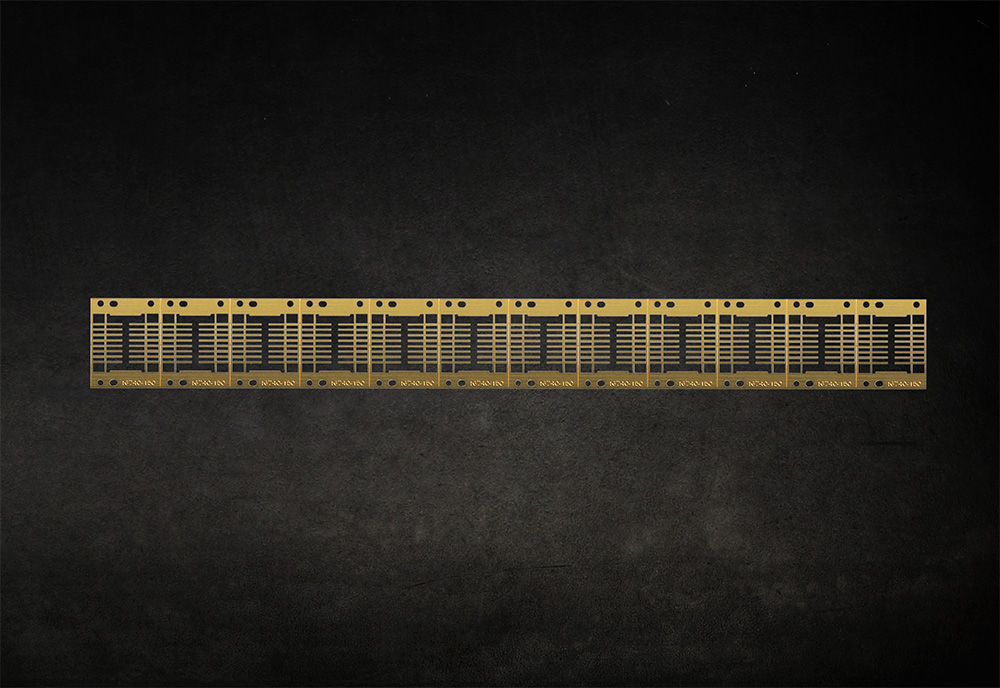

Lead Frame Products Division
Titanium Products Division

News

JOE SENCABAUGH JOINS PHOTOFABRICATION ENGINEERING'S PRECISION PRODUCTS DIVISION March 7, 2015, ...
Photofabrication Engineering, Inc. Names New Corporate Officer - Stephen Church, CPA Milford, MA, ...
Chip Lehrer, President of PEI, is proud to announce that PEI has received an award from Senior...

Tradeshows

MD & M | Anaheim, CA | February 10-12, 2015 | Booth #466
BIOMEDevice Show | Boston, MA | May 6th-7th, 2015, Booth #543
Del Mar Electronics and Design Show | May 6th - 7th, 2015 | Booth #317
SPIE.DSS Show | Baltimore, MD | April 21st. - 23rd., 2015 | Booth #328
Design-2-Part Show | Marlborough, MA | September 30th. - October 1st., 2015  | Booth # TBD



PEI utilizes a unique technology

providing precise tolerances to the aerospace, automotive, battery, electronics, fuel cell, medical apparatus and implant, and microelectronics industries among others.



PEI's Precision Products Division offers industrial product designers and electrical/mechanical design engineers working for a vast range of OEMs the opportunity to create precision metal parts and components at competitive prices. Our history of engineering excellence ensures that every customer's concept and design will be professionally and completely implemented, because PEI's design staff offers unparalleled photoetching expertise that adds value while lowering total project costs.



What is Photochemical Machining?

PEI's photochemical machining process--recognized by the Society of Manufacturing Engineers--involves the selective removal of a material by chemical action.  Evolving from the time-tested process of photoengraving, chemical machining was first used in the production of gunsight reticles in the early 1940's.  Since then it has found broad application in such industries as aerospace, appliances, automotive, battery, fuel cell, medical, microelectronics, semiconductor and telecommunications, to name but a few.



Photochemical machining outperforms many similar, more traditional manufacturing operations such as "blanking" complex and precise shapes, "piercing" holes of infinite sizes and shapes, "drilling" blind holes and "milling" or "grinding" of surfaces to precise depths.



The tooling used is a photographic image produced from the electronic artwork created to meet each customer's exacting product specifications.  It is inexpensive, and it is easy to make tooling design changes quickly.



What are the Advantages of Photochemical Machining?

The advantages of PEI's photochemical etching process include:

• Rapid prototyping

• No burrs

• No stresses

• No effect on magnetic properties

• No deformation

• No tool wear - the 1000th piece is exactly the same as the first piece

• Precise control of the "Z" (depth) dimension



When Should Photochemical Machining be Used?

Photochemical machining (photoetching) should be used when a customer is looking for:

• Reduced set-up costs (the only cost is for a phototool)

• Rapid turnaround time (the process is ideal for prototyping new products)

• A way to avoid secondary operations such as deburring or annealing

• Products made of materials like titanium and beryllium copper, which are difficult to machine

• Intricate or highly precise products

• Repeatability, repeatability,repeatability



What Materials can be Processed by Photochemical Machining?

Aluminum • Beryllium copper • Beryllium nickel •Blue spring steel •Brass • Bronze • Cold rolled steel • Copper • Copper clad • Direct bond copper on ceramic • Gold • Inconel • Invar • Kovar • Magnesium • Metglas • Mild steel • Molybdenum • Monel • Nickel • Nickel iron • Nickel silver • Pewter • Phosphorous bronze • Silver • Spring steel • Stainless steel • Tin • Titanium • Tungsten • Zinc • Zirconium



How Thick Can the Metal Be?

Metal thicknesses generally range from 0.005 in. (0.127 mm) to 0.125 in. (3.175 mm).



What Finishing Services Does PEI Offer?

PEI also offers finishing services such as ....

• Assembly

• Forming

• Heat treating

• Plating

• Polishing

• Silkscreening
